ShakeMap Metadata Module

Contributed by kevotheclone

This Metadata module will display any United States Geological Survey (USGS) ShakeMap elements found in your feeds in Channel Summary Templates. The specific ShakeMap elements displayed are <eq:depth>, <eq:region> and <eq:seconds> but other ShakeMap elements could easily be added.

You must have MSXML installed for metadata modules to work.

This metadata module requires Awasu 2.4.1 or later.

Creating the Metadata module

  1. Copy the text below and paste it into a new text file named
  2. Save it in your Resources/Metadata Modules sub-directory under your Awasu installation directory.

Instructions for configuring Metadata Modules can be found here.

Name = ShakeMap
Summary = Extracts ShakeMap (earthquake) extension elements

This metadata module extracts United States Geological Survey (USGS) ShakeCast (earthquake) extension elements
that have been embedded into feeds using the
<a href="" target="_blank">USGS ShakeMap Vocabulary</a>

eq =

[Common Metadata]
eq/seconds = eq:seconds
eq/depth = eq:depth
eq/region = eq:region

[Item Pane Columns]
_AvailabilityMsg=Available for channels that embed GeoRSS information into their feed items.

[Item Details Template Block]
    <div class="mm-shakemap">
    {%REPEAT% eq}
        <div><span style="color:red;"><b>Seconds:</b> {%ITEM-METADATA% eq/seconds}</span> <span style="color:green;"><b>Depth:</b> {%ITEM-METADATA% eq/depth}</span> <span style="color:blue;"><b>Region:</b> {%ITEM-METADATA% eq/region}</span></div>

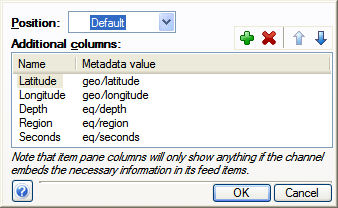

After installing the Metadata Module and configuring it in the Advanced page of Awasu's Program Options dialog, there will be three new Metadata values that you can add to the Item Pane Depth (eq/depth), Region (eq/region), and Seconds (eq/seconds) as depicted below (along with the geo/latitude and geo/longitude Metadata values).

For additional help on adding columns to the Item Pane see here.

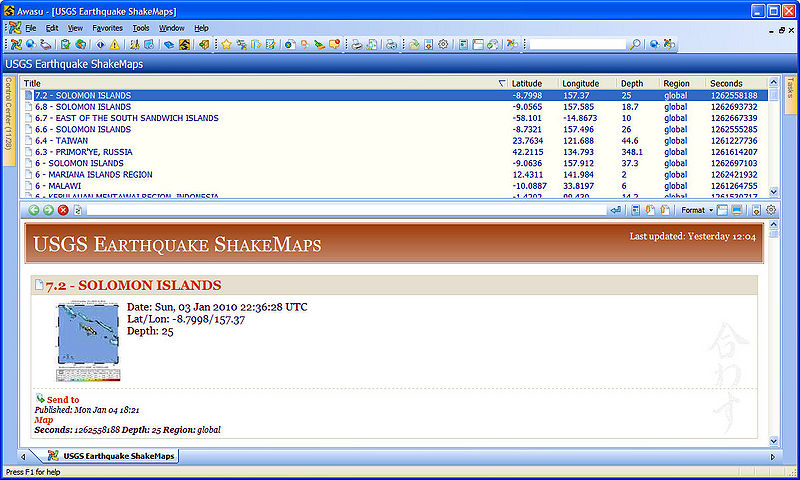

Once the ShakeMap Metadata values have been added to Awasu's Item Pane it should look like this:
